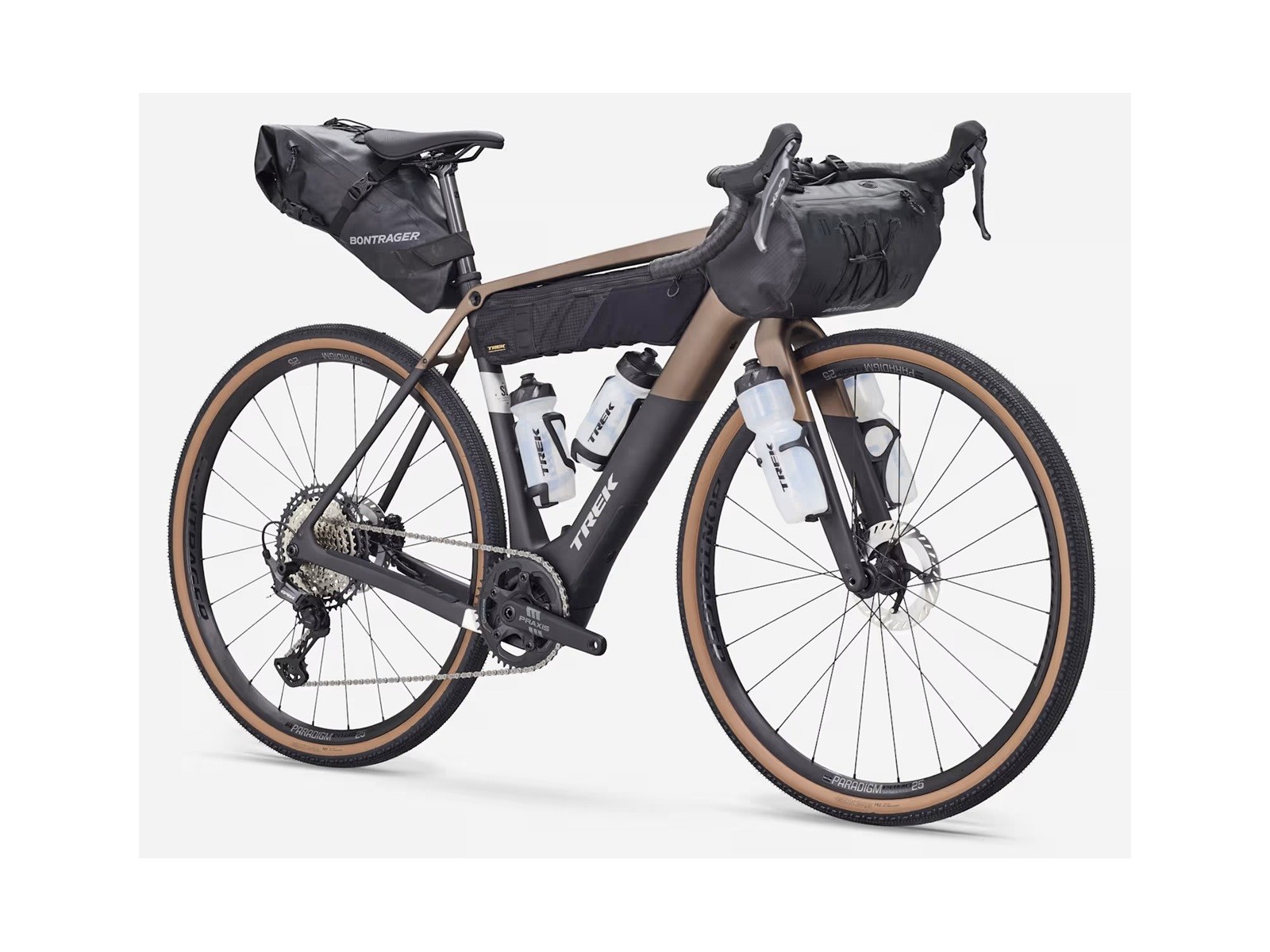

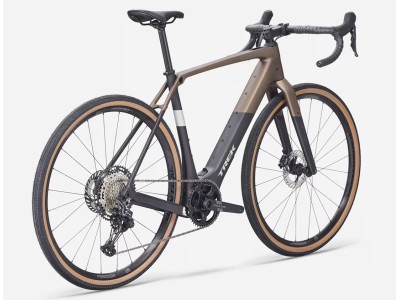

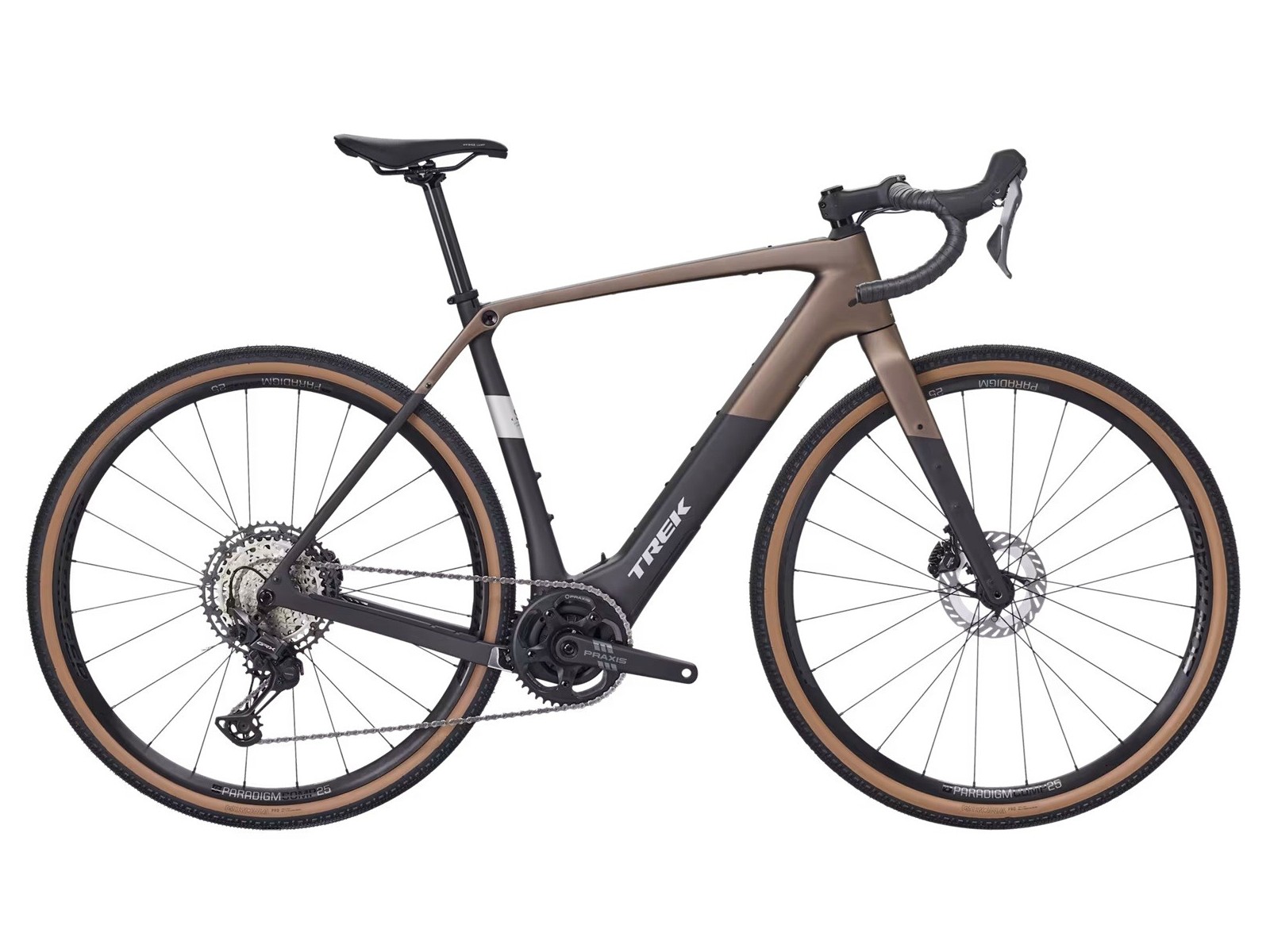

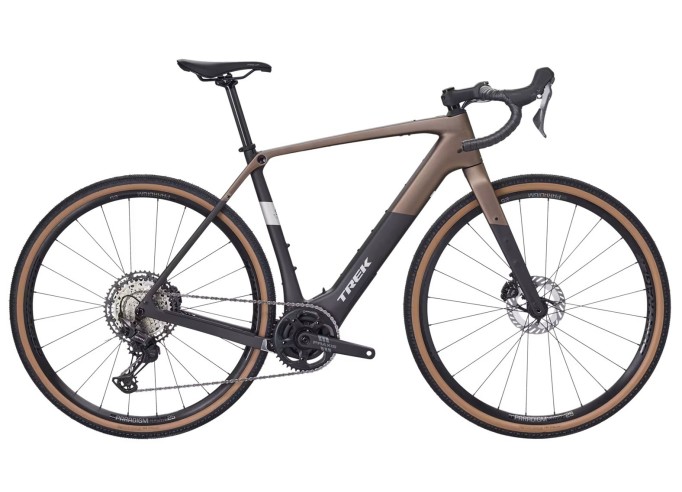

Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web
Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web

Gravel e-bike TREK Checkpoint+ SL 5 | Matte Bronze Age/Dark Web

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting and endurance geometry to keep you comfortable for the long haul.

Frame size
  • S
  • M
  • ML
  • L
  • XL
  • XS
5337522
Out of stock
€4,131.40
Monthly payment from 101.37€

Product Details

Shock absorbers
Rigid

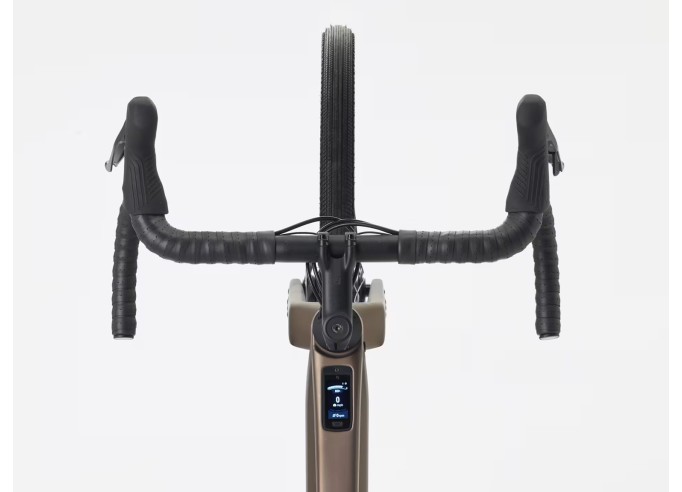

Handlebars
Bontrager Elite Gravel, alloy
Tyres
Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm
Brake type
Hydraulic disc
Frame (Full spec)

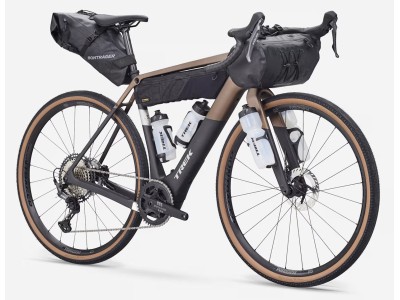

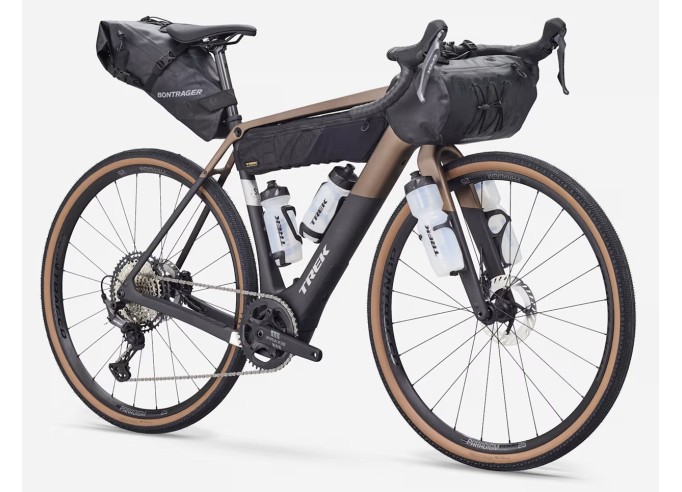

500 Series OCLV Carbon, TQ drive system, IsoSpeed, hidden mudguard mounts, rack mounts, integrated frame bag mounts, invisible cable routing, flat-mount disc, integrated chainkeeper, UDH, 142x12 mm chamfered thru axle

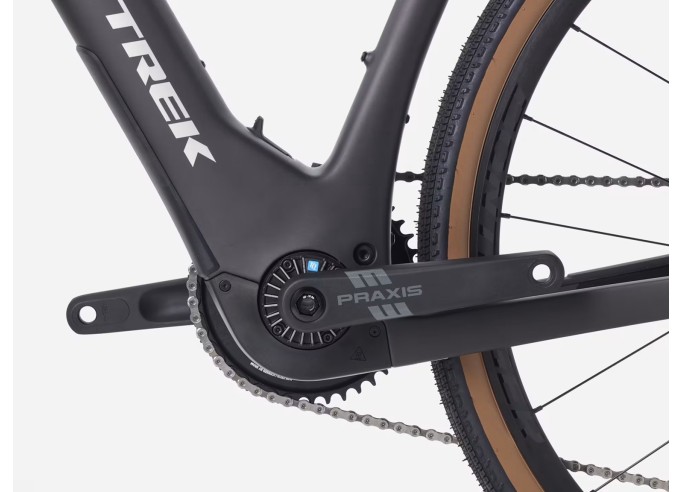

Cranks
Praxis Alloy,
Frame material
Carbon
Number of speeds
1x12
Seat post
Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length
Cassette
Shimano XT M8200, 10-51, 12-speed
Fork

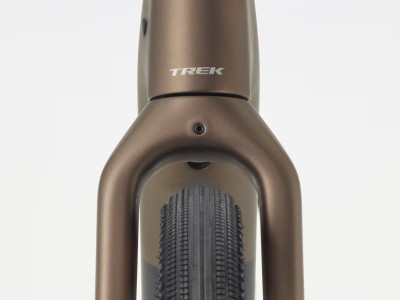

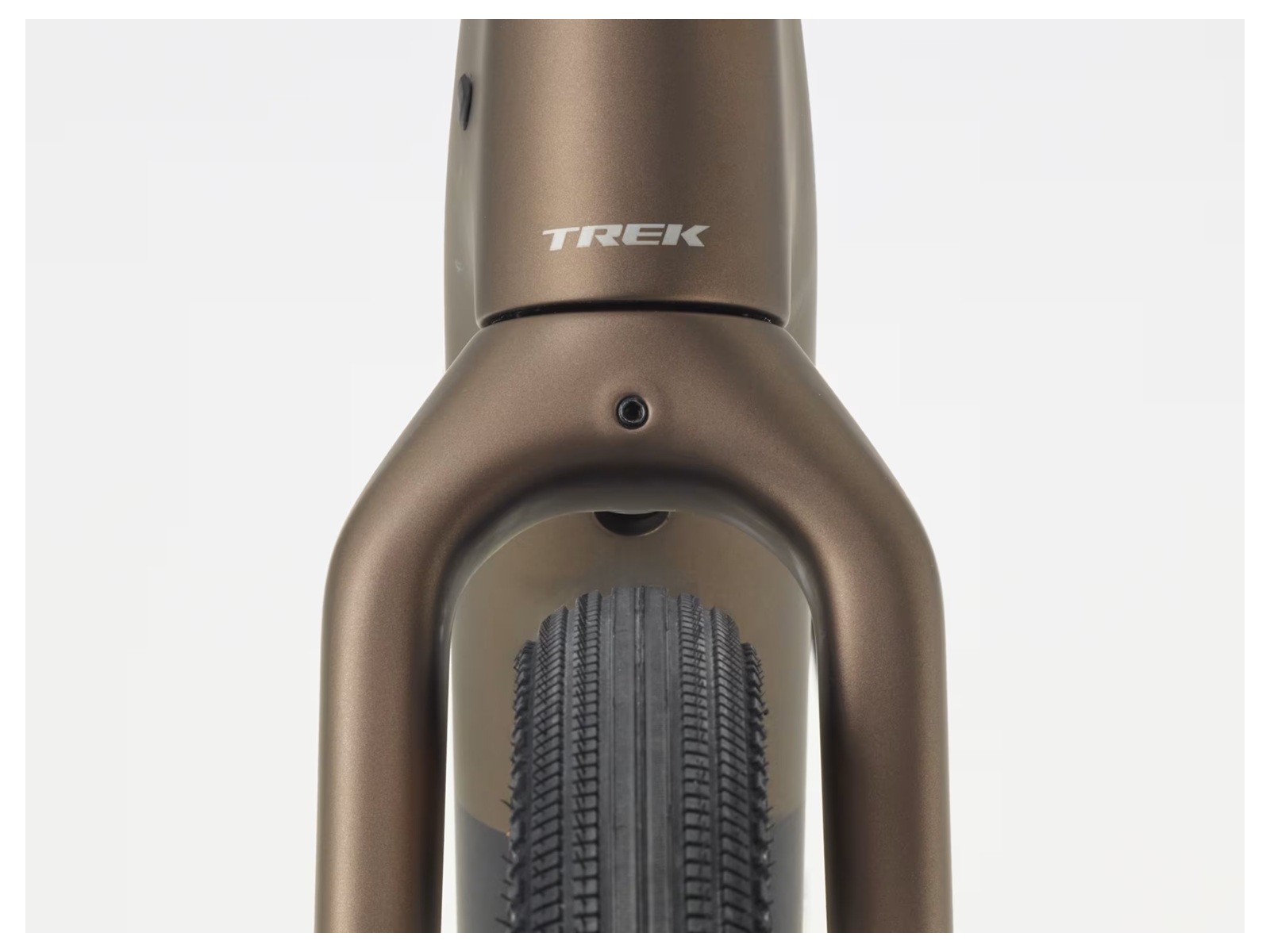

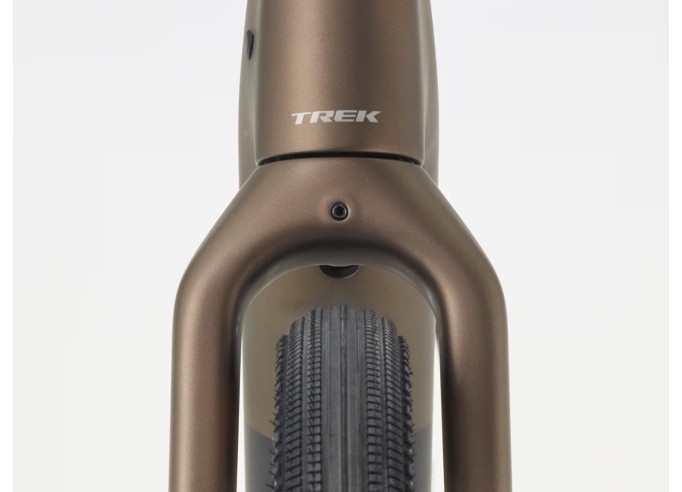

Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
Chain
Shimano XT M8100, 12-speed
Stem
Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
Seat (Saddle)
TREK Verse Short Comp, steel rails, 145 mm width
Wheel Size
700c
Brakes
Shimano GRX RX820
Rear derailleur
Shimano GRX RX822, 36T max cog
Model line
TREK Checkpoint+
Model year
2026
Ride+ Battery
TQ 360Wh
Ride+ Controller
TQ LED display with Bluetooth & ANT+ connectivity

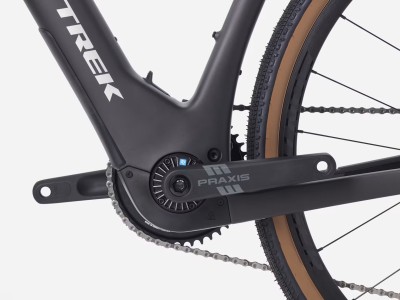

Ride+ Motor
TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Brake Lever Left
Shimano GRX RX820
Brake Lever Right
Shimano GRX RX820
Shifter Right
Shimano GRX RX820, 12-speed
Front Wheel
Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width, 100x12 mm thru axle
Rear Wheel
Bontrager Paradigm Comp 25, Tubeless-Ready, 25 mm rim width, Shimano Micro Spline freehub, 142x12 thru axle
197216222576
